EV battery fuse supplier famous in China

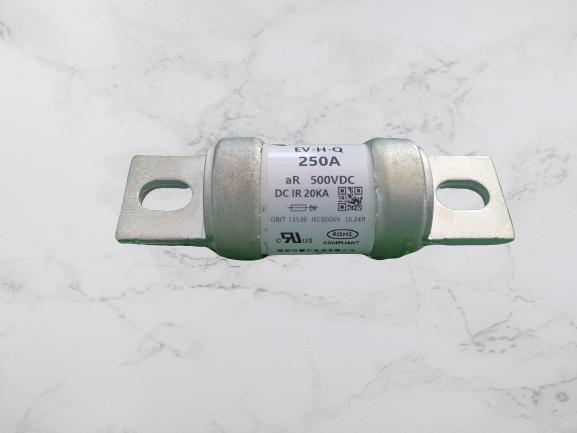

Product basic information EV battery fuse

This EV-H-Q fuse suitable line in rated voltage of DC500V, rated current range of 10A-500A,breaking capacity of AC100KA/DC20KA. Implementation standards are UL248, IEC60268,Compliance with EU and China RoHS Directives.It is suitable for short circuit and backup protection of electric vehicle driving power system, energy storage and power batteries, energy storage capacitors, power conversion systems, frequency conversion controllers,chargers,wires and other vehicle devices and equipment.

Dimension of the EV battery fuse(mm)

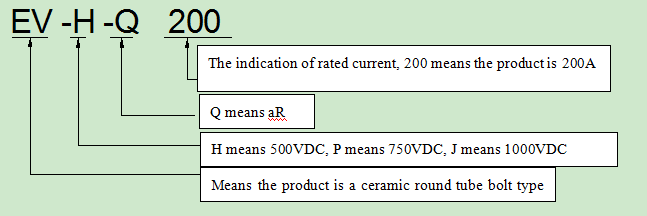

Product system code of the EV battery fuse

Conditions of use

Normal use conditions and parameter correction

The fuse works under the normal use conditions described below and does not require additional modification.

When it exceeds the normal use conditions, if it is within the allowable use conditions, it may be necessary to modify some parameters or consult. If it exceeds the range of allowable use conditions, you should consult our company, and conduct work suitability assessment and testing of the conditions.

It is recommended that the current value of long-term flow is not more than 80% of the rated current. Please refer to the above-mentioned temperature evaluation curve for over-temperature use.

Altitude: The altitude of the installation site does not exceed 2000m. If the altitude exceeds 2000m, the rated voltage needs to be reduced. 2000~4000m, the rated voltage is reduced by 90% for every 1000m increase.

Ambient air temperature

Normal use conditions: -5℃～60℃.

Allowable use conditions: -55℃～120℃.

We have high-quality professional products, as well as advanced product lines and equipment’s. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Along the increasing market demands, we continuously satisfy customers by updating products to improve production systems, improve quality.

Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.

We are well-known as one of the leading high voltage automotive fuses, charging pile fuse, high voltage fuse, fuse holder, charging pile module fuse manufacturers and supplier in China. Welcome to enquiry our high quality fuse and the surrounding products at competitive price from our factory. Contact us for more details.

DISSMANN Fuse Company was founded in 2000, focusing on the fuse and the surrounding product development, production, all products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

Shenzhen Deer is National High-Tech Company, with 20years’ R&D Lean production and rich experience. The initial technology originated from Europe and US, after many years’optimization, the products’performance has unique advantages.

Our products are widely used in New-Energy vehicles Whole vehicle field (PACK, PDU, BDU,ECU,Motor,MSD,Low-Voltage Control box),Charging pile system and Charging Module, PV Solar Combiner box,PV Inverter, Energy Storage UPS,Industrial Distribution Cabinet,5G Telecom Power, BS Plug, Home appliance control board, Lighting drive power etc. Our products got UL,UR,VDE,TUV,ASTA,PSB,CCC,CQC,CE,ROHS, worldwide Safety regulations and Environmental certification.

In order to improve quality and efficiency, shorten delivery time,all-round comprehensive Core competence, we successfully build Fuse’s core part--Fuse wire’s Metallurgical plating, the material’s formula and craft. And build a team for High-level mechanical electrical integration,Full-Automatic Non-standard Equipment.We have absolute advantage in meeting Fuse core Electrical performance and High-speed Automatic production.

Our Fuses have unique advantage in High-Current, High-Voltage, High breaking capacity,Low Temperature-rise,Low Power loss, Long life, Anti-Surge, Lightning resistant, super fast-acting fuse etc. Special applications. Our Auto-grade Fuse Passed harsh environmental reliability tests. For DC High-Voltage (1000VDC),High current (1500A),Good Seismic performance, Light-weight,High breaking capacity(DC50KA, AC200KA), Super Long life(100K Kilometers),Low allowable current, have obvious advantage in Vehicle Regulation Application Index!

We can get new products’ Certificates testing rapidly, we invested several Million RMB to build a laboratory, the Lab. Is UL&TUV authorized third-party witness Lab., Provide a solid guarantee for the product to obtain authority and reliable test data.This Lab. Enable us to get UL&TUV very fast(within 15days).

In order to serve customers better, our High-level Non-standard Automatic Production Dept.are producing Customized equipment, make full-automatic highly-efficient Mechanized production serve manufacturer better, make the production easier, quality better, delivery faster, cost lower and performance higher.

Expect to hand in hand with our old&new customers, to make higher quality products and create better future!
