AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified

Dissmann^® AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

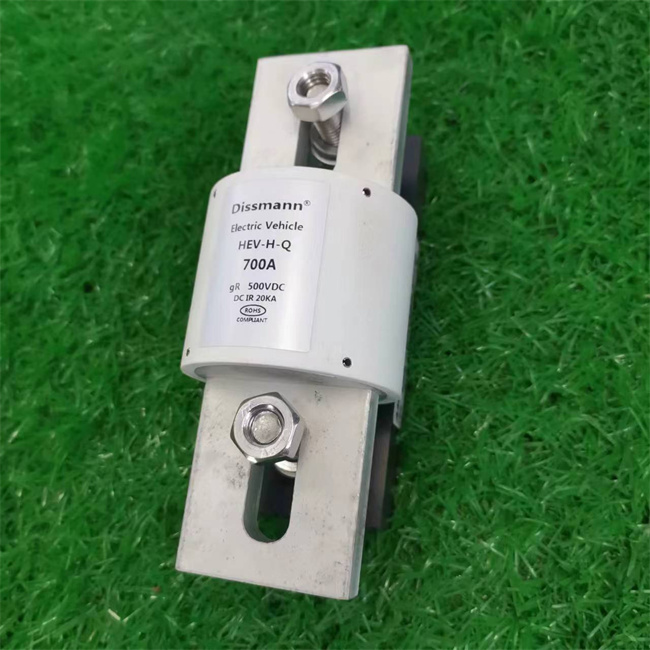

DC500V 700Amp HEV fuse for electric vehicle

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

DC750V HEV FUSES IN DIFFERENT AMP 500A/300/100A

Basic information of the HEV fuse:

Type:automobile fuse (bolt type installation)
Dimensions and performance conforming to UL248
Rated voltage: AC500V(HEV-H-Q series)/AC690V(HEV-P-Q series)/AC1000V(HEV-J-Q series),
Rated current: 5A~800A,
Breaking capacity: AC100KA
Conform to EU and China RoHS directives
The executive standard is UL248-20,ISO8820,JASO-D622, TUV certification number: J 50458819 0001
This series of products are automobile fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to electric vehicles, energy storage system and charging modules.

Dimension of the breaking capacity AC100KA HEV series fuse:

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

1.AC500V(HEV-H-Q series)fuse size code:

Size Code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HZ1	81	22	40	55	66.5	9	15	3.3	14.75
HZ2	92.2	25	53	68	77	9	18	3.2	13.5
HZ3	92.2	33	53	68	75	9	22	5	12.5
HZ4	109	38	53	69	89.5	10.5	25	6	20.7
HZ5	110	50	53	70.5	90	10.5	38	6	20.7
HZ6	161	63	53	87	126	13.5	50	10	34
HZ7	177	76	81.5	113.5	139	16	60	10	28.4

2.AC690V(HEV-P-Q series)fuse size code:

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HT1	73.5	14.3	48	60.5	63.5	6.5	10.3	1.6	8
HT2	110	22	69	84	95.5	9	15	3.3	14.75
HT3	129	36.5	72	88	109	10.5	25	6	20.7
HT4	129	50	72	88.6	109	10.5	38	6	20.7
HT5	180	63	72	106	145	13.5	50	10	33

3.AC1000V(HEV-J-Q series)fuse size code:

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HF1	124	25	78	100	109	9	18	4	13.5
HF2	117	33	78	93	100	9	22	5	12.5
HF3	139.5	38	83.5	99.5	120	10.5	25	6	20.7
HF4	146.5	50	89.5	106	126.5	10.5	38	6	20.7
HF5	197.5	63	89.5	123.5	162.5	13.5	50	10	33

Ordinary produc type you can choose from our factory:

1.AC500V(HEV-H-Q series)fuse model:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-H-Q-35	35A	33	145	8.5	HZ1	Mounting Bolt M8 recommended torque 11N·m
HEV-H-Q-40	40A	74	315	8
HEV-H-Q-45	45A	100	430	8
HEV-H-Q-50	50A	130	650	8.5
HEV-H-Q-60	60A	200	880	10
HEV-H-Q-70	70A	210	900	10.5	HZ2
HEV-H-Q-80	80A	300	1360	12.5
HEV-H-Q-90	90A	350	1500	15.5
HEV-H-Q-100	100A	460	1950	17.5
HEV-H-Q-125	125A	750	3430	26	HZ3
HEV-H-Q-150	150A	1000	4450	31
HEV-H-Q-175	175A	1400	6100	36
HEV-H-Q-200	200A	1800	8300	41
HEV-H-Q-225	225A	4600	23000	39	HZ4	Mounting Bolt M10 recommended torque 20N·m
HEV-H-Q-250	250A	6250	32100	41
HEV-H-Q-275	275A	7800	40000	46
HEV-H-Q-300	300A	9600	49000	52
HEV-H-Q-325	325A	13500	63000	54
HEV-H-Q-350	350A	14000	72000	59
HEV-H-Q-400	400A	18500	95500	66
HEV-H-Q-450	450A	24000	125000	75	HZ5
HEV-H-Q-500	500A	28500	147000	84
HEV-H-Q-600	600A	40500	203000	108
HEV-H-Q-700	700A	54000	295000	122	HZ6	Mounting bolt M12 recommended torque 28N·m
HEV-H-Q-800	800A	75000	406000	130	HZ6
HEV-H-Q-1000	1000A	90000	430000	146	HZ7
HEV-H-Q-1200	1200A	120000	590000	180	HZ7

2.AC690V(HEV-P-Q series)fuse model:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-P-Q-5	5A	1.6	10	1.5	HT1	Mounting Bolt M6 recommended torque 4N·m
HEV-P-Q-10	10A	3.5	19	3.8
HEV-P-Q-15	15A	9.5	73	5.4
HEV-P-Q-20	20A	25.5	176	6.0
HEV-P-Q-25	25A	42	330	7.0
HEV-P-Q-30	30A	55	420	9.0
HEV-P-Q-35	35A	33	160	11.0	HT2	Mounting Bolt M8 recommended torque 11N·m
HEV-P-Q-40	40A	75	315	12.0
HEV-P-Q-45	45A	95	430	12.0
HEV-P-Q-50	50A	135	590	12.5
HEV-P-Q-60	60A	205	940	14.8
HEV-P-Q-70	70A	300	1980	17.5
HEV-P-Q-80	80A	350	2350	20.5
HEV-P-Q-90	90A	410	2630	24.0
HEV-P-Q-100	100A	530	3450	26.5
HEV-P-Q-125	125A	1700	7200	27	HT3	Mounting Bolt M10 recommended torque 20N·m
HEV-P-Q-150	150A	2750	11000	34
HEV-P-Q-175	175A	4100	16000	35
HEV-P-Q-200	200A	5400	21000	42
HEV-P-Q-225	225A	7500	30000	45
HEV-P-Q-250	250A	9700	41000	47
HEV-P-Q-275	275A	12000	58000	51
HEV-P-Q-M300	300A	16500	70000	56	HT4
HEV-P-Q-M325	325A	20000	82000	61
HEV-P-Q-M350	350A	23000	94000	63
HEV-P-Q-M400	400A	30000	123000	76
HEV-P-Q-300	300A	16500	70000	56
HEV-P-Q-325	325A	20000	82000	61
HEV-P-Q-350	350A	23000	94000	63
HEV-P-Q-400	400A	30000	123000	76
HEV-P-Q-450	450A	35000	135000	95
HEV-P-Q-500	500A	44000	165000	108
HEV-P-Q-600	600A	48000	210000	115	HT5	Mounting Bolt M12 recommended torque 28N·m
HEV-P-Q-700	700A	53000	298000	125
HEV-P-Q-800	800A	75000	445000	140

3.AC1000V(HEV-J-Q series)fuse model:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-J-Q-5	5A	20	115	1.8	HF1	Mounting Bolt M8 recommended torque 11N·m
HEV-J-Q-10	10A	30	170	2.2
HEV-J-Q-15	15A	48	220	3.1
HEV-J-Q-20	20A	72	360	3.6
HEV-J-Q-25	25A	85	510	4.2
HEV-J-Q-30	30A	110	830	5.1
HEV-J-Q-35	35A	180	1250	6.3
HEV-J-Q-40	40A	290	1650	7.8
HEV-J-Q-45	45A	350	1900	8.5
HEV-J-Q-50	50A	440	2450	10.0
HEV-J-Q-60	60A	600	3500	12.5
HEV-J-Q-70	70A	820	5500	14
HEV-J-Q-80	80A	1050	6500	16
HEV-J-Q-90	90A	1800	10500	17	HF2
HEV-J-Q-100	100A	2300	12000	18
HEV-J-Q-125	125A	3400	21000	20
HEV-J-Q-150	150A	4900	25500	27
HEV-J-Q-175	175A	9200	40000	30	HF3	Mounting Bolt M10 recommended torque 20N·m
HEV-J-Q-200	200A	15000	60000	32
HEV-J-Q-225	225A	19000	105000	40
HEV-J-Q-250	250A	24000	113000	47
HEV-J-Q-275	275A	25000	130000	49
HEV-J-Q-300	300A	26000	160000	52
HEV-J-Q-325	325A	33000	180000	55
HEV-J-Q-350	350A	42000	230000	60	HF4
HEV-J-Q-400	400A	71000	320000	65
HEV-J-Q-450	450A	78000	300000	80
HEV-J-Q-500	500A	105000	350000	95
HEV-J-Q-600	600A	163000	530000	105	HF5	Mounting bolt M12 recommended torque 28N·m
HEV-J-Q-700	700A	320000	680000	155
HEV-J-Q-800	800A	420000	870000	185

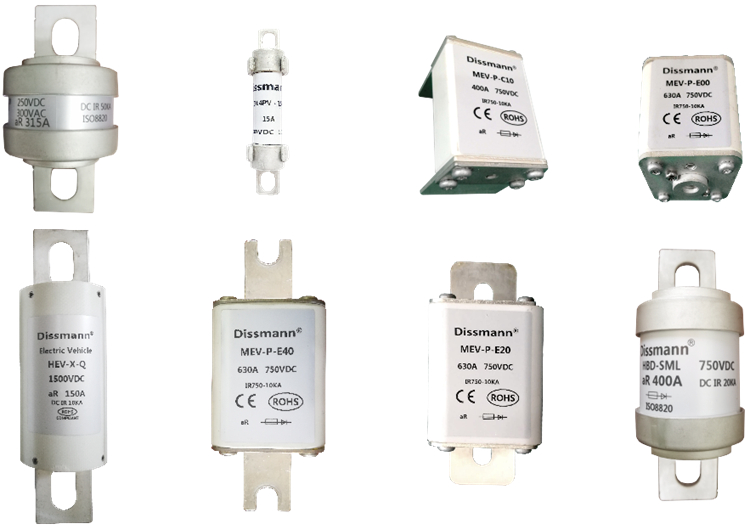

More automotive fuses for the electric vehicle:
