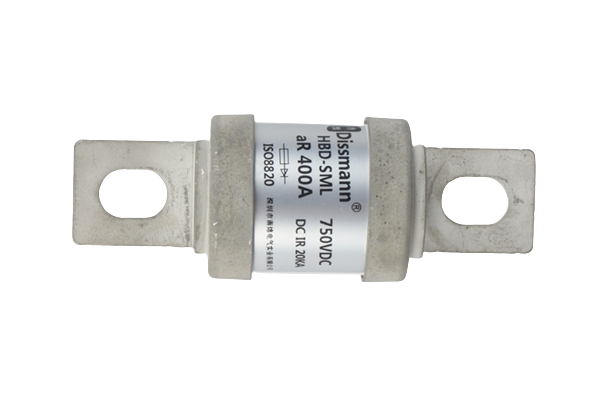

Dissmann^®DC750V 400A Fiber Pipe Semiconductor Protection Fuse

Dissmann^® Semiconductor fuse BS88 british standard fuse HBD-400SML, rated voltage: DC750V, rated current: 250A, breaking capacity: DC20KA.

BS88 HBD Series fuses are round ceramic tube type fast-acting fuses, their dimensions and performance conforming to UL248-13, ISO8820, JAS0-D622, environmental protection conforming to European Union and China RoHS directives.

BS88 HBD Series fuses feature small size, and high breaking capacity, applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, is suitable for road vehicle industry applications, and can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage and power battery, energy storage capacitor, frequency conversion controller, charger, wire and other vehicle devices.

Specifications of the White BS88 Semiconductor Protection Fuse

1.Shape and mounting dimensions of the BS88 fuse:

2.Current characteristic curve of the BS88 fuse:

3.More fuse models according to the rated current for you to choose :

Model	Product code	Rated current(A)	I²t(A²Sec)		Power consumption(W)
			弧前	熔断
SML/STL	HBD-180SML/HBD-180STL	180	1358	13230	39
	HBD-200SML/HBD-200STL	200	2548	17760	40
	HBD-225SML/HBD-225STL	225	3552	25200	42.8
	HBD-250SML/HBD-250STL	250	4990	3560	47.5
	HBD-280SML/HBD-280STL	280	6860	51000	48.2
	HBD-315SML/HBD-315STL	315	9760	71600	54.5
	HBD-350SML/HBD-350STL	350	14100	96600	55.6
	HBD-400SML/HBD-400STL	400	18500	125000	58

How to choose a right model of the BS88 Fuse:

You can choose the right semiconductor protection fuse in China for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized BS88 fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
