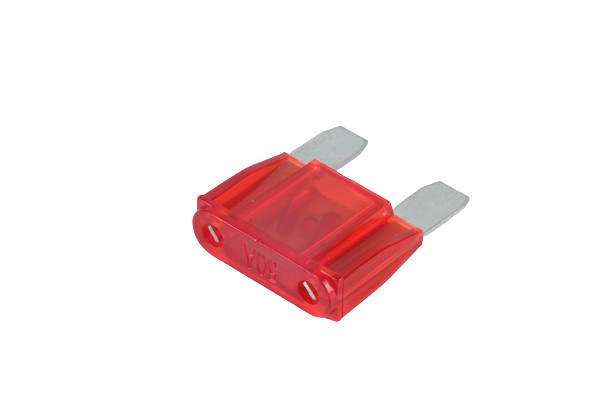

High Breaking Capacity DC80V 50A Automotive Blade Fuse

Dissmann^® Automotive blade fuse DFN-E-50, rated voltage: DC80V, rated current: 50A, breaking capacity: DC1000A.

DFN-E Series blade fuses rated voltage: DC80V, rated current: 20A-60A, breaking capacity: DC1000A, dimensions and performance conforming to UL248-13, ISO8820, environmental protection conforming to European Union and China RoHS directives, and features small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive blade fuses are applicable to the internal branch protection, UPS, communication power short circuit and backup protection of automobile electrical appliances.

Specifications of the DFN-E Series Automotive Blade Fuse

1.Shape and mounting dimensions of the fuse:

2.Fuse model classification according to rated current :

3.Performance criteria of the fuse:

Test current item(A)	Current	Minimum time(s)	Maximum time(s)
110%	20A-60A	360000s	-
150%	20A-60A	-	1800s
200%	20A-60A	2s	60s
350%	20A-60A	0.20s	7s
600%	20A-60A	0.040s	1s

How to choose a right model of the DFN-E Automotive Blade Fuse:

You can choose the right automotive blade Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
