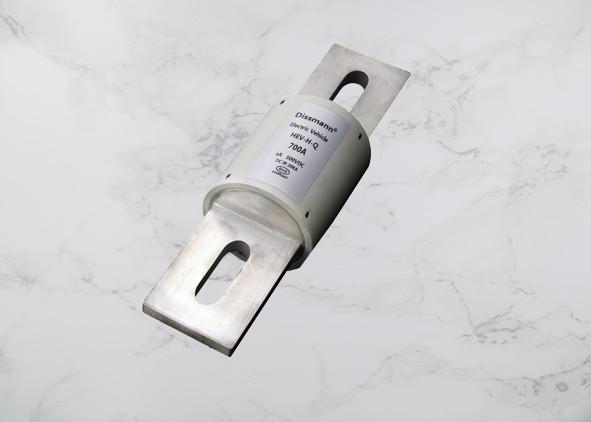

    HEV High Current Ceramic Automotive Fuses For UPS 500VDC Rated Voltage:

    Ask Lasest Price
    Brand Name : Dissmann
    Model Number : HEV-H-Q 700A/500VDC
    Certification : UL,CCC
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    HEV High Current Ceramic Automotive Fuses For UPS 500VDC Rated Voltage:

    High current fuse fast acting fuse high breaking capacity fuse


    Meterial:

    Noumenon: fiber pipe

    Pins:Alloy


    Features:

    Ceramic Automotive Fuse

    Current rating:5A-800A

    Voltage rating:AC/DC500V or lower

    Type protection:aR

    Breaking Capacity:AC100KA,DC50KA


    Product presentation


    Rated Voltage

    额定电压

    AC690V/DC700V或低于(IEC),750V(UL)

    Type Protection

    保护类别

    aR

    Rated Current

    额定电流

    5A-800A

    Breaking Capacity

    分断能力

    AC100KA,DC50KA

    (时间常数≤15ms)

    Meet the Requirement

    符合要求

    UL248-20,ISO8820,JASO-D622,

    欧盟和RoHS 指令

    Remarks

    备注

    gR数据另版提供

    产品外形尺寸(mm)/Overall dimensions of the product(mm)



    尺寸代码A±2B±1.5C±1D±1.5E±1.5F±1G±0.5H±0.2J±1
    HZ18122405566.59153.314.75
    HZ292.2255368779183.213.5
    HZ392.233536875922512.5
    HZ410938536989.510.525620.7
    HZ5110505370.59010.538620.7
    HZ616163538712613.5501034
    HZ71777681.5113.513916601028.4

    电流特性曲线图/Current characteristic curve



    产品型号/Product type


    Model

    型号

    Rated Current

    额定电流A

    I2t(A2s)

    Power dissipation

    功耗W

    Size code

    尺寸代码

    Install

    安装

    弧前
    HEV-H-Q-3535A331458.5HZ1

    Mounting Bolt M8 recommended torque 11N·m

    安装螺栓M8推荐扭矩11N·m

    HEV-H-Q-4040A743158
    HEV-H-Q-4545A1004308
    HEV-H-Q-5050A1306508.5
    HEV-H-Q-6060A20088010
    HEV-H-Q-7070A21090010.5HZ2
    HEV-H-Q-8080A300136012.5
    HEV-H-Q-9090A350150015.5
    HEV-H-Q-100100A460195017.5
    HEV-H-Q-125125A750343026HZ3
    HEV-H-Q-150150A1000445031
    HEV-H-Q-175175A1400610036
    HEV-H-Q-200200A1800830041
    HEV-H-Q-225225A46002300039HZ4

    Mounting Bolt M10 recommended torque 20N·m

    安装螺栓M10推荐扭矩20N·m

    HEV-H-Q-250250A62503210041
    HEV-H-Q-275275A78004000046
    HEV-H-Q-300300A96004900052
    HEV-H-Q-325325A135006300054
    HEV-H-Q-350350A140007200059
    HEV-H-Q-400400A185009550066
    HEV-H-Q-450450A2400012500075HZ5
    HEV-H-Q-500500A2850014700084
    HEV-H-Q-600600A40500203000108
    HEV-H-Q-700700A54000295000122HZ6

    Mounting bolt M12 recommended torque 28N·m

    安装螺栓M12推荐扭矩28N·m

    HEV-H-Q-800800A75000406000130
    HEV-H-Q-10001000A90000430000146HZ7
    HEV-H-Q-12001200A120000590000180
