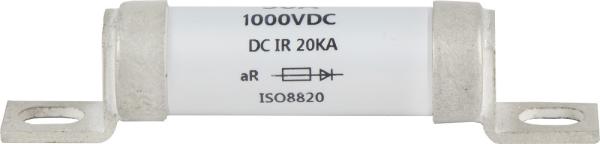

BS88 series ceramic fuse DC750V made in China

Product description of BS88 series fuse

This BS88 series fuse suitable line in circuit of DC750V,rated current of 6A-700A,breaking capacity of DC20KA,which have the characteristics of small size, and high reliability.The performance and dimenison of the BS88 series fuses conform to GB13539,IEC60269,UL248.

Application of the BS88 series fuse

Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage.

Dimension of the BS88 series fuse

Mechanical characteristics

The anti-vibration and shock tolerance of this series of fuses are in line with the rail transit class II application environment.

This series of fuses have the ability to withstand vibration and shock, which is suitable for general motor vehicles. The application environment with strong vibration generally needs to be tested and verified Class of Pollution.

Installation torque: Install the fuse on the test fixture according to the regulations. The test is carried out without connecting the terminals and cables.

The bolts are M6, and the installation torque is 4N m. The fuse shall remain intact after the test and can be removed from the fixture.

FAQ

Question:Is this BS88 series products sufficient inventory?

Answer:Most of our BS88 series products have inventory. Except for individual currents, there is no inventory, but it is generally sufficient material, and the production date is also short.

We have high-quality professional products, as well as advanced product lines and equipment’s. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Along the increasing market demands, we continuously satisfy customers by updating products to improve production systems, improve quality.

Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.

We are well-known as one of the leading high voltage automotive fuses, charging pile fuse, high voltage fuse, fuse holder, charging pile module fuse manufacturers and supplier in China. Welcome to enquiry our high quality fuse and the surrounding products at competitive price from our factory. Contact us for more details.

DISSMANN Fuse Company was founded in 2000, focusing on the fuse and the surrounding product development, production, all products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

Shenzhen Deer is National High-Tech Company, with 20years’ R&D Lean production and rich experience. The initial technology originated from Europe and US, after many years’optimization, the products’performance has unique advantages.

Our products are widely used in New-Energy vehicles Whole vehicle field (PACK, PDU, BDU,ECU,Motor,MSD,Low-Voltage Control box),Charging pile system and Charging Module, PV Solar Combiner box,PV Inverter, Energy Storage UPS,Industrial Distribution Cabinet,5G Telecom Power, BS Plug, Home appliance control board, Lighting drive power etc. Our products got UL,UR,VDE,TUV,ASTA,PSB,CCC,CQC,CE,ROHS, worldwide Safety regulations and Environmental certification.

In order to improve quality and efficiency, shorten delivery time,all-round comprehensive Core competence, we successfully build Fuse’s core part--Fuse wire’s Metallurgical plating, the material’s formula and craft. And build a team for High-level mechanical electrical integration,Full-Automatic Non-standard Equipment.We have absolute advantage in meeting Fuse core Electrical performance and High-speed Automatic production.

Our Fuses have unique advantage in High-Current, High-Voltage, High breaking capacity,Low Temperature-rise,Low Power loss, Long life, Anti-Surge, Lightning resistant, super fast-acting fuse etc. Special applications. Our Auto-grade Fuse Passed harsh environmental reliability tests. For DC High-Voltage (1000VDC),High current (1500A),Good Seismic performance, Light-weight,High breaking capacity(DC50KA, AC200KA), Super Long life(100K Kilometers),Low allowable current, have obvious advantage in Vehicle Regulation Application Index!

We can get new products’ Certificates testing rapidly, we invested several Million RMB to build a laboratory, the Lab. Is UL&TUV authorized third-party witness Lab., Provide a solid guarantee for the product to obtain authority and reliable test data.This Lab. Enable us to get UL&TUV very fast(within 15days).

In order to serve customers better, our High-level Non-standard Automatic Production Dept.are producing Customized equipment, make full-automatic highly-efficient Mechanized production serve manufacturer better, make the production easier, quality better, delivery faster, cost lower and performance higher.

Expect to hand in hand with our old&new customers, to make higher quality products and create better future!
