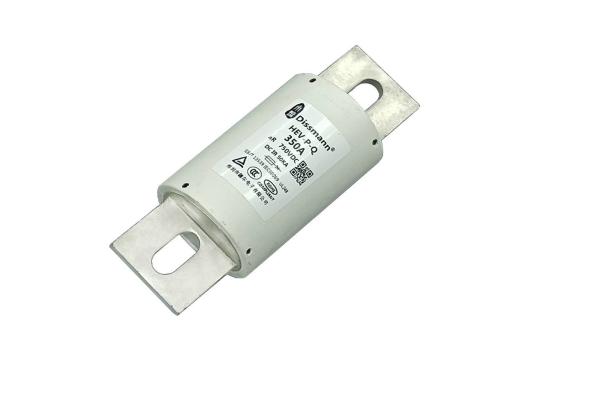

Low Voltage Fuse 750Volt DC Fuse EV Series Fuse Charging Pile Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation:

产品外形尺寸(mm)/Overall dimensions of the product(mm)

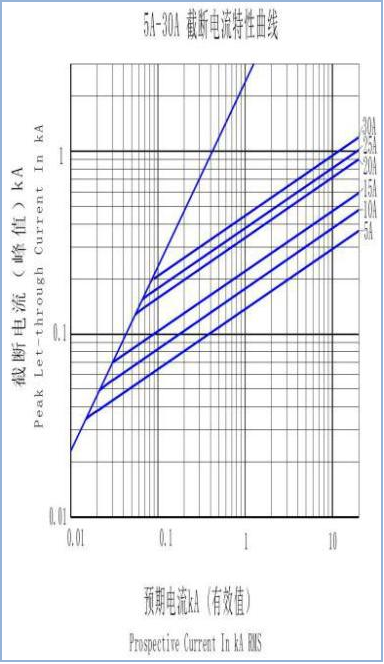

电流特性曲线图/Current characteristic curve

产品型号/Product type

Model 型号	Rated Current 额定电流A	I2t(A2s)		Power dissipation 功耗W	Size code 尺寸代码	Install 安装
		弧前	总
HEV-P-Q-5	5A	1.6	10	1.5	HT1	Mounting Bolt M6 recommended torque 4N·m 安装螺栓M6推荐扭矩4N·m
HEV-P-Q-10	10A	3.5	19	3.8
HEV-P-Q-15	15A	9.5	73	5.4
HEV-P-Q-20	20A	25.5	176	6.0
HEV-P-Q-25	25A	42	330	7.0
HEV-P-Q-30	30A	55	420	9.0
HEV-P-Q-35	35A	33	160	11.0	HT2	Mounting Bolt M8 recommended torque 11N·m 安装螺栓M8推荐扭矩11N·m
HEV-P-Q-40	40A	75	315	12.0
HEV-P-Q-45	45A	95	430	12.0
HEV-P-Q-50	50A	135	590	12.5
HEV-P-Q-60	60A	205	940	14.8
HEV-P-Q-70	70A	300	1980	17.5
HEV-P-Q-80	80A	350	2350	20.5
HEV-P-Q-90	90A	410	2630	24.0
HEV-P-Q-100	100A	530	3450	26.5
HEV-P-Q-125	125A	1700	7200	27	HT3	Mounting Bolt M10 recommended torque 20N·m 安装螺栓M10推荐扭矩20N·m
HEV-P-Q-150	150A	2750	11000	34
HEV-P-Q-175	175A	4100	16000	35
HEV-P-Q-200	200A	5400	21000	42
HEV-P-Q-225	225A	7500	30000	45
HEV-P-Q-250	250A	9700	41000	47
HEV-P-Q-275	275A	12000	58000	51
HEV-P-Q-M300	300A	16500	70000	56	HT4
HEV-P-Q-M325	325A	20000	82000	61
HEV-P-Q-M350	350A	23000	94000	63
HEV-P-Q-M400	400A	30000	123000	76
HEV-P-Q-300	300A	16500	70000	56
HEV-P-Q-325	325A	20000	82000	61
HEV-P-Q-350	350A	23000	94000	63
HEV-P-Q-400	400A	30000	123000	76
HEV-P-Q-450	450A	35000	135000	95
HEV-P-Q-500	500A	44000	165000	108
HEV-P-Q-600	600A	48000	210000	115	HT5	Mounting Bolt M12 recommended torque 28N·m 安装螺栓M12推荐扭矩28N·m
HEV-P-Q-700	700A	53000	298000	125
HEV-P-Q-800	800A	75000	445000	140

Certificate:

Product Anatomy

Test equipment

Production equipment

Our Certificates
