    58V DC Low Voltage Fuses 1 Amp Rated Current: Fast Blow ROHs Standard

    Ask Lasest Price
    Brand Name : Dissmann
    Model Number : DFN-X
    Certification : UL
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1,000,000pcs
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    58V DC Low Voltage Fuses 1 Amp Rated Current: Fast Blow ROHs Standard

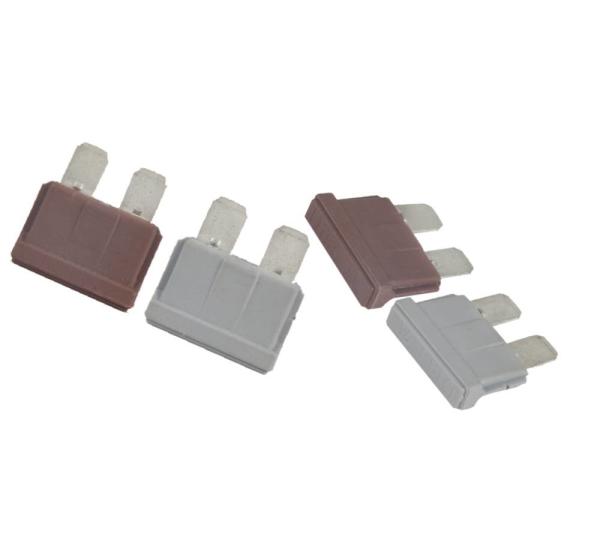

    Low Voltage Automotive Fuse Fast Blow Cartridge Fuse Low Current Fuse


    Material:
    Noumenon: electric wood shell
    Pins: Copper alloy


    Product Presentation:

    Rated Voltage


    58VDC

    Characteristic


    Fast Blowing
    Rated Current1A-40A

    Breaking Capacity


    DC1000A

    Meet the Requirement


    UL248,ISO8820,

    EU and Rosh Directive

    Remarks


    UL

    Overall dimensions of the product(mm)


    Product type

    Model


    Product code


    Rated current


    I²t

    (A²Sec)

    Voltage drop


    Pigment


    DFN-XDFN-X-110.4174(Black)
    DFN-X-221.5140(Gray)
    DFN-X-336.3137(Violet)
    DFN-X-4413135(Pink)
    DFN-X-5525125(Tan)
    DFN-X-7.57.556115(Brown)
    DFN-X-1010110110(Red)
    DFN-X-1515295102(Blue)
    DFN-X-202048096(Yellow)
    DFN-X-2525100090(Clear)
    DFN-X-3030146086(Green)
    DFN-X-3535220588(Dark green)
    DFN-X-4040320095(Orange)

    Currentcharacteristiccurve


    Performance criteria

    Test current item(A)CurrentMinimum time(s)Maximum time(s)
    110%1A-40A3600
    150%1A-40A0.5300
    200%1A-40A0.1520
    350%1A-40A0.040.5
    600%1A-40A0.020.1

    Test equipment

    Production equipment
    Our Certificates
