    UL Certified Ceramic Automotive Fuse 400A-1250A Rated Current

    Ask Lasest Price
    Brand Name : Dissmann
    Model Number : MEV-H-F00/G00
    Certification : UL248-13、ISO8820、JAS0-D622、IEC60269、RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000000pcs
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    UL Certified Ceramic Automotive Fuse 400A-1250A Rated Current

    High Breaking Capacity Fuse Ceramic Automotive Fuse UL Certified Fuse Made in China

    The ceramic tube fuse has been widely used in the entire electronic product industry because of its excellent breaking capacity and explosion-proof function. The main material is ceramics, which is safer than traditional glass tubes.


    The following are several different types of ceramic fuses produced by the Dissamnn fuse:

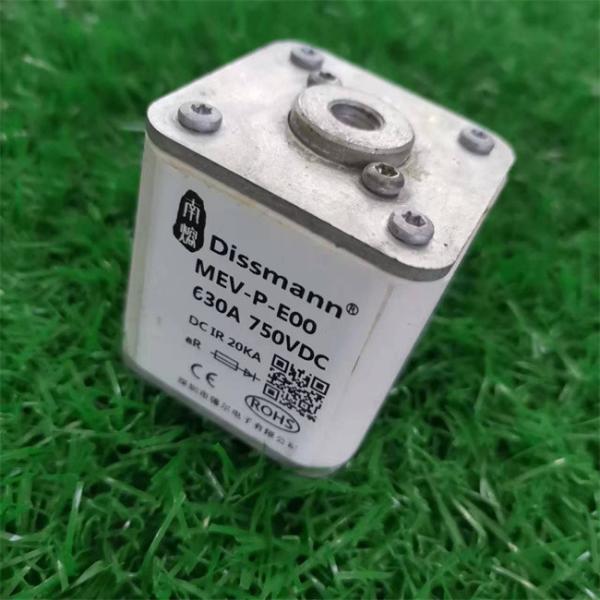

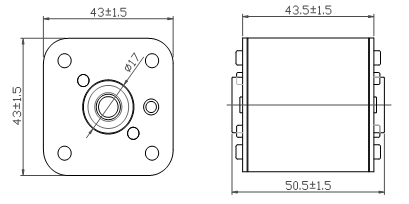

    1.750VDC Square ceramic MEV series fuse:MEV-P-E00



    Model

    Product code

    Rated current

    A

    I²t(A²Sec)

    Power consumption

    W

    Pre-arcTotal
    MEV-N-E00MEV-N-E00-4040A402709
    MEV-N-E00-5050A7751511
    MEV-N-E00-6363A11577014
    MEV-N-E00-8080A185125018
    MEV-N-E00-100100A360245021
    MEV-N-E00-125125A550370026
    MEV-N-E00-160160A1100750030
    MEV-N-E00-200200A22001500035
    MEV-N-E00-250250A42002850040
    MEV-N-E00-315315A70004650050
    MEV-N-E00-350350A100006850055
    MEV-N-E00-400400A1500010500060
    MEV-N-E00-450450A2100014000065
    MEV-N-E00-500500A2700018000070
    MEV-N-E00-550550A3400023000075
    MEV-N-E00-630630A4850032500080

    2.500VDC Cylindrical Ceramic HEN series fuse:HEN-H-Q

    500VDC Cylindrical Ceramic HEN series fuse

    Size codeA±0.3B±0.5C±0.5D±0.3E±0.5M
    HN1534531207M6
    HM1534531207M8
    HN2534537247M6
    HM2534537247M8

    Model

    Rated CurrentA

    I2t(A2s)

    Power dissipation

    W

    Size code

    Install

    Pre-arcFusing
    HEN-H-Q-N200200A60002040023HN1

    Mounting Bolt M6 recommended torque 6N·m

    HEN-H-Q-N225225A92003050025
    HEN-H-Q-N250250A115004000027
    HEN-H-Q-N275275A148005000029
    HEN-H-Q-N300300A170006000030
    HEN-H-Q-N325325A192007350032
    HEN-H-Q-N350350A220008650034
    HEN-H-Q-N375375A2520010200036
    HEN-H-Q-N400400A3000011700037
    HEN-H-Q-N450450A5650032200040

    HN2

    HEN-H-Q-N500500A8700036500044
    HEN-H-Q-N550550A11500041000047
    HEN-H-Q-N630630A15000051200050
    HEN-H-Q-M200200A60002040023

    HM1


    Mounting Bolt M8 recommended torque 12N·m

    HEN-H-Q-M225225A92003050025
    HEN-H-Q-M250250A115004000027
    HEN-H-Q-M275275A148005000029
    HEN-H-Q-M300300A170006000030
    HEN-H-Q-M325325A192007350032
    HEN-H-Q-M350350A220008650034

    HM2

    HEN-H-Q-M375375A2520010200036
    HEN-H-Q-M400400A3000011700037
    HEN-H-Q-M450450A5650032200040
    HEN-H-Q-M500500A8700036500044
    HEN-H-Q-M550550A11500041000047
    HEN-H-Q-M630630A15000051200050

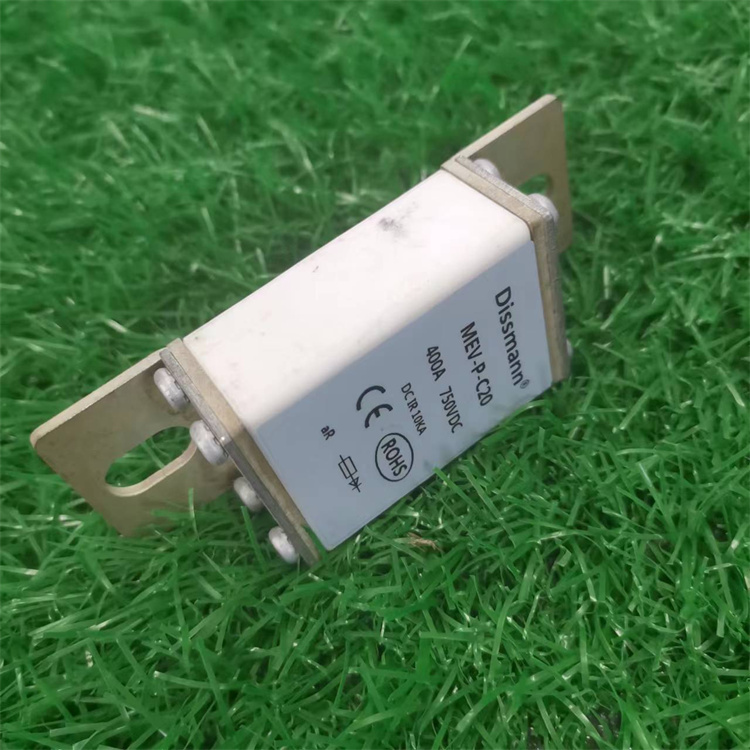

    3.750VDC Ceramic MEV series fuse:MEV-P-C20

    750VDC Ceramic MEV series fuse

    ModelProduct codeRated current
    A
    I²t(A²Sec)Power consumption
    W
    Pre-arcFusing
    MEV-P-C20MEV-P-C20-16167.2485.5
    MEV-P-C20-202011.5787
    MEV-P-C20-2525191309
    MEV-P-C20-32324027010
    MEV-P-C20-40406946012
    MEV-P-C20-505011577015
    MEV-P-C20-6363215145016
    MEV-P-C20-8080380255019
    MEV-P-C20-100100695465024
    MEV-P-C20-1251251200850028
    MEV-P-C20-16016023001600032
    MEV-P-C20-20020042002800037
    MEV-P-C20-25025077505150042
    MEV-P-C20-315315120008050052
    MEV-P-C20-350350145009850058
    MEV-P-C20-4004001950013300067

    4.750VDC Ceramic HD14P series fuse:HD14P-30

    750VDC Ceramic HD14P series fuse

    Model

    Rated current

    A

    Rated voltage

    V

    Breaking capacity

    HD14S.J0510A~150A400Vac6KA
    HD14H.J0510A~150A500Vac

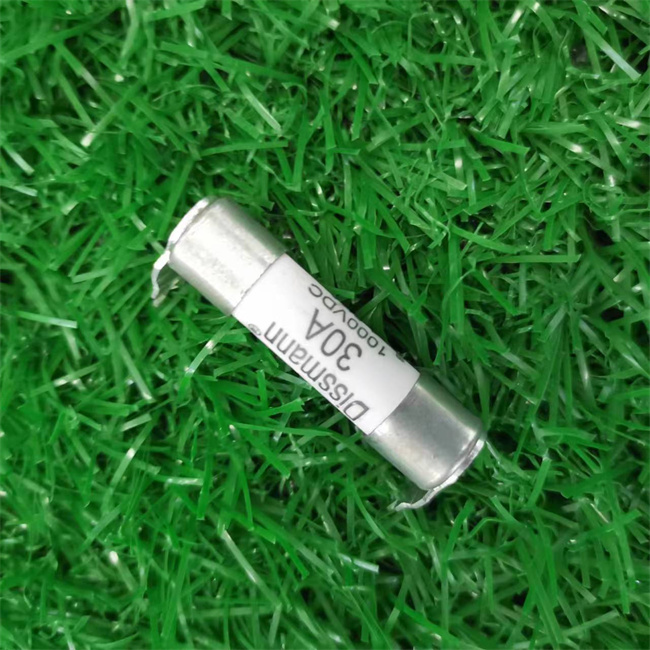

    5.1000VDC Ceramic10x38 PV fuse:HD10PV.J03

    1000VDC Ceramic10x38 PV fuse

    Model

    Rated current

    A

    Rated voltage

    V

    Breaking capacity

    Body material

    HD10PV.J01/ HD10PV.J03/ HD10PV.J041A~40A1000Vac/dc1.5KA

    Ceramic / glass fiber

    HD10P.J01/ HD10P.J03/ HD10P.J041A~40A750Vac/dc1.5KA
    HD10V.J01/ HD10V.J03/ HD10V.J041A~50A700Vac/dc6KA
    HD10D.J01/ HD10D.J03/ HD10D.J041A~50A500Vac/dc6KA
    HD10C/HD10C.J01/HD10C.J03/HD10C.J0430A~100A400Vdc1.5KA

    Ceramic

    HD10X/HD10X.J01/HD10X.J03/HD10X.J0430A~100A500Vac1.5KA
    HL10L1/HL10L1.J01/HL10L1.J03/HL10L1.J0430A~100A200Vdc1.5KA
    HL10L2/HL10L2.J01/HL10L2.J03/HL10L2.J0430A~100A100Vdc1.5KA
    HL10L/HL10L.J01/HL10L.J02/HL10L.J03/HL10L.J0430A~100A80Vdc1.5KA
    HDQ10C/HDQ10C.J01/HDQ10C.J03/HDQ10C.J0430A~100A400Vdc1.5KA

    glass fiber

    HDQ10X/HDQ10X.J01/HDQ10X.J03/HDQ10X.J0430A~100A500Vac1.5KA
    HLQ10L1/HLQ10L1.J01/HLQ10L1.J03/HLQ10L1.J0430A~100A200Vdc1.5KA
    HLQ10L2/HLQ10L2.J01/HLQ10L2.J03/HLQ10L2.J0430A~100A100Vdc1.5KA
    HLQ10L/HLQ10L.J01/HLQ10L.J03/HLQ10L.J0430A~100A80Vdc1.5KA
